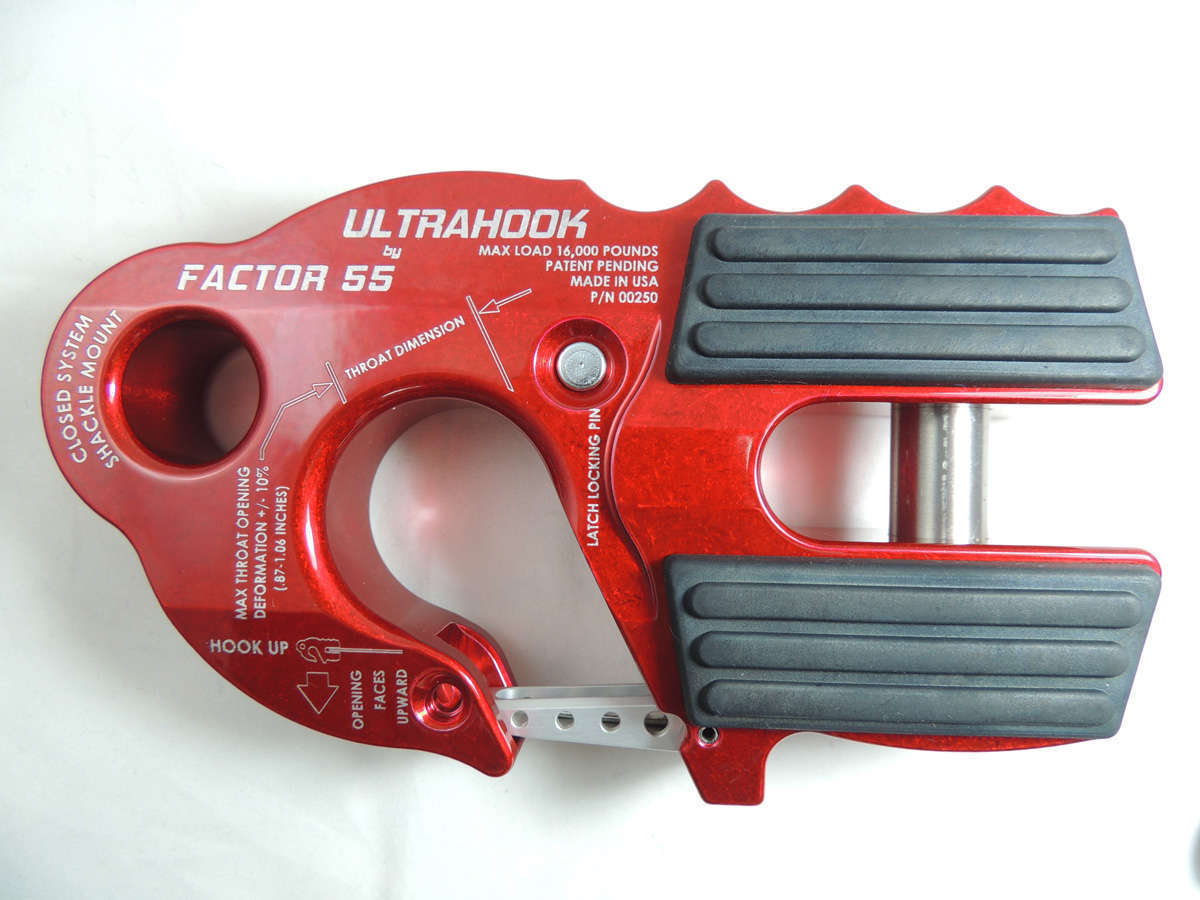

FACTOR 55 UltraHook in red. The hook has a titanium pin at the base and an aluminum hook with a locking gate and a separate circular shackle mounting hole.

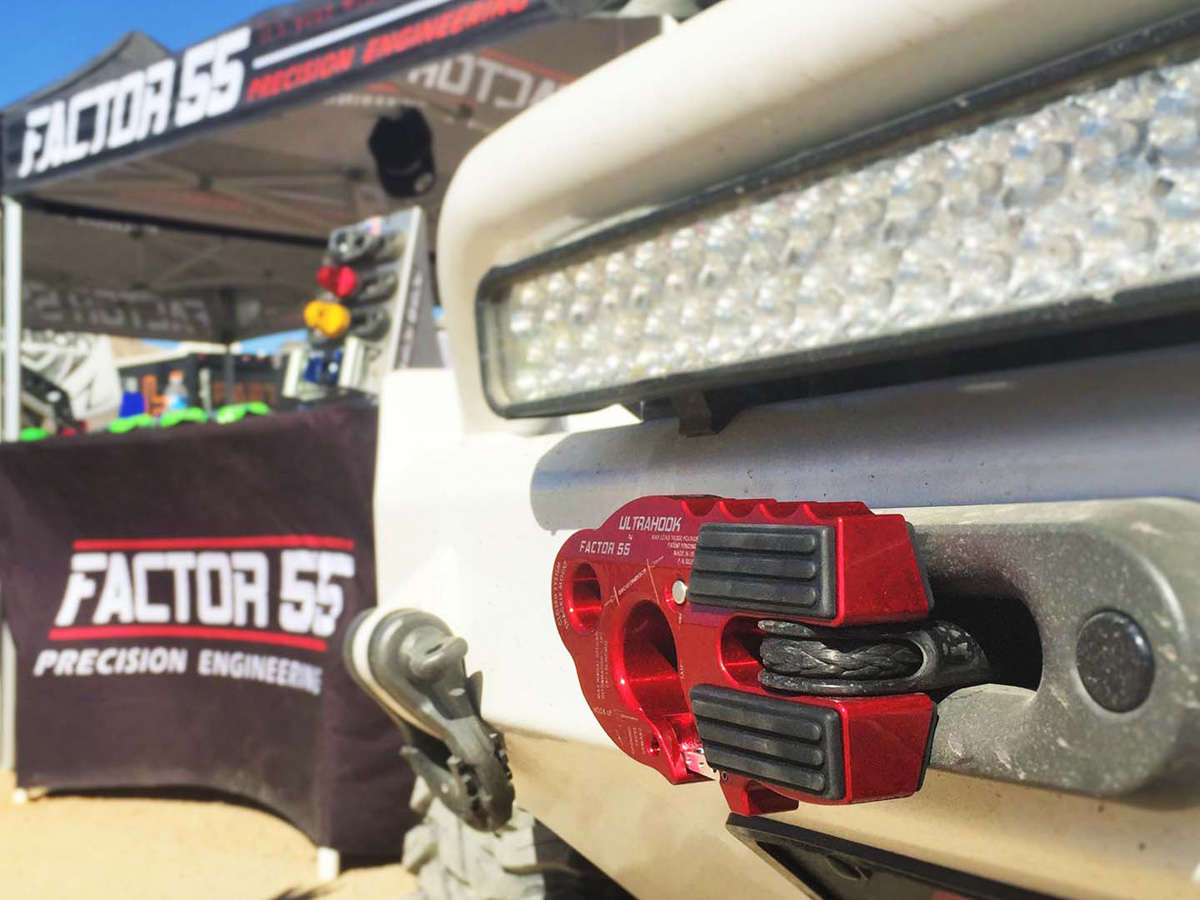

FACTOR 55 UltraHook in red, mounted to a winch on the bumper of a toyota, right under a light bar.

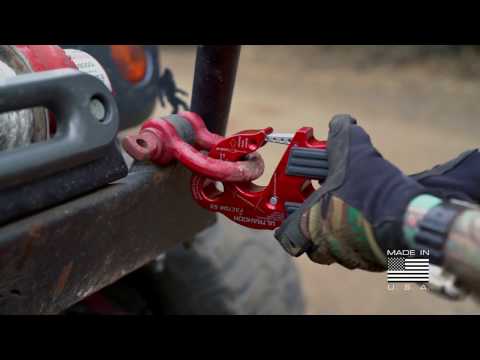

FACTOR 55 UltraHook Low Profile Shackle Mount Video. Image shoes a person clipping the ultra hook to a bow shackle on a bumper

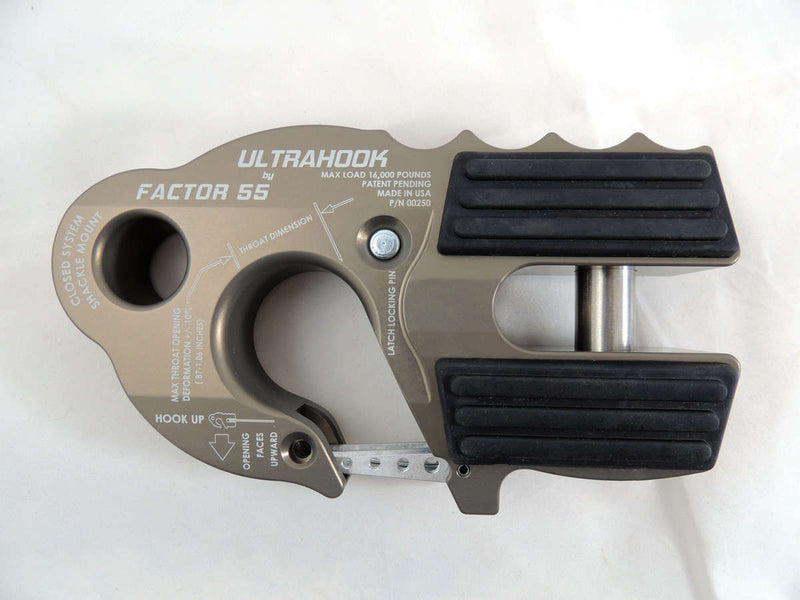

FACTOR 55 UltraHook Low Profile Shackle Mount in Gray

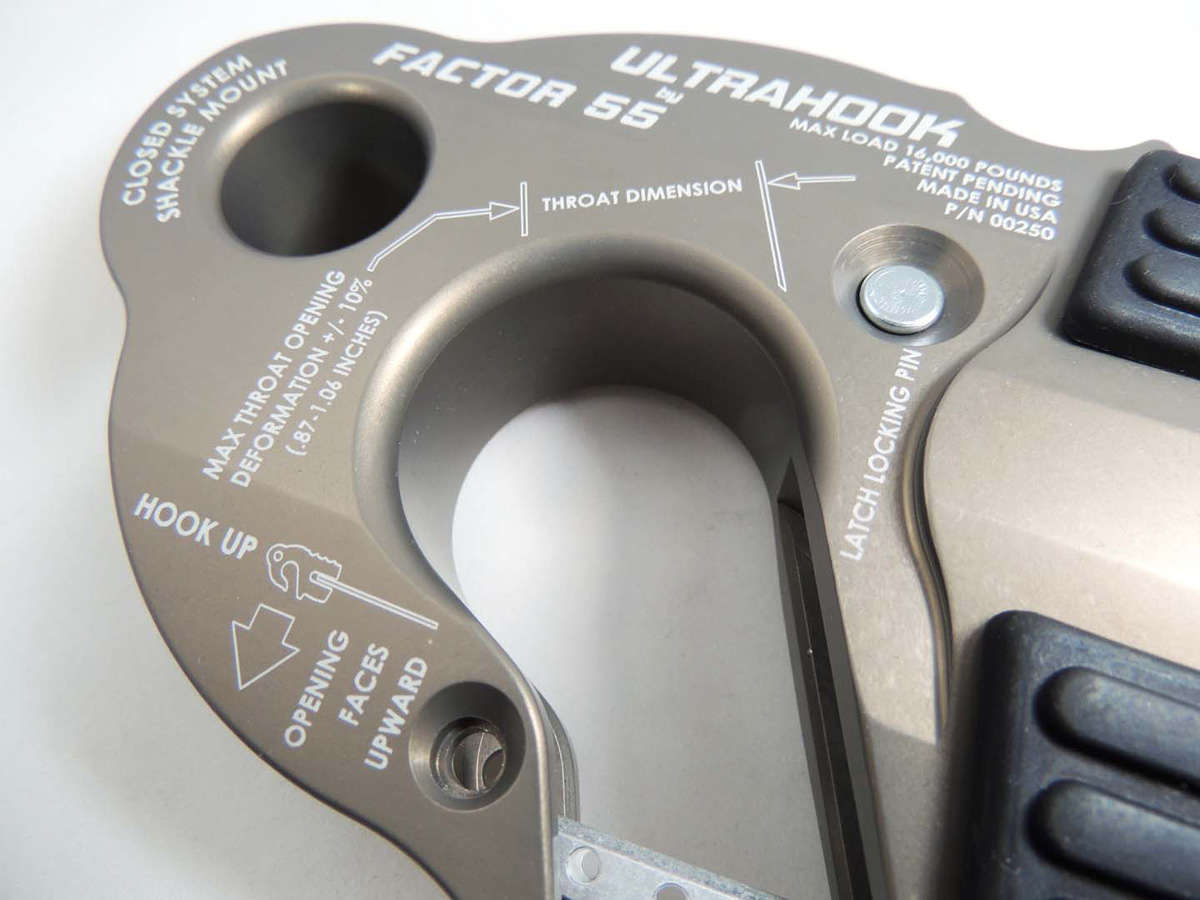

FACTOR 55 UltraHook close up detail on the hook. The throat of the hook measures .87 inches

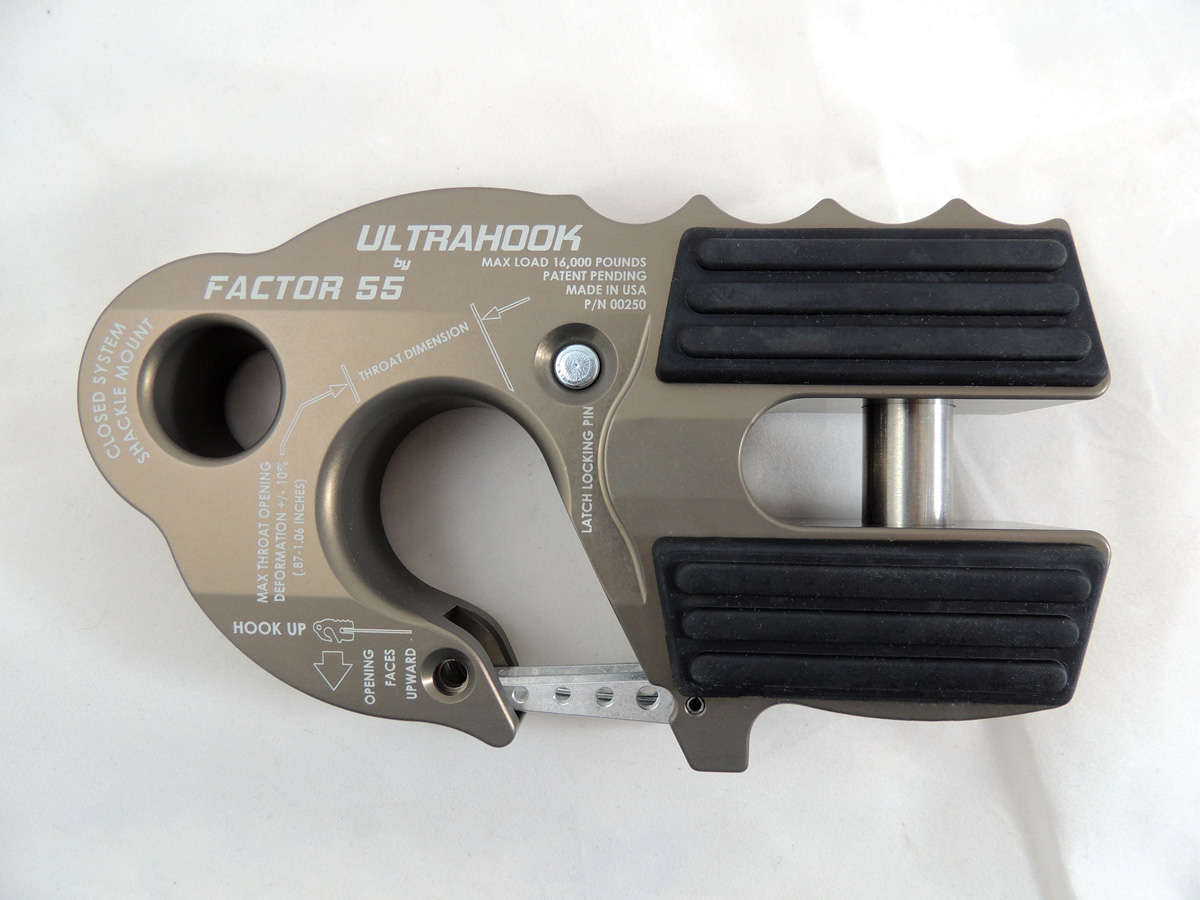

FACTOR 55 UltraHook Low Profile Shackle Mount in gray. Top View

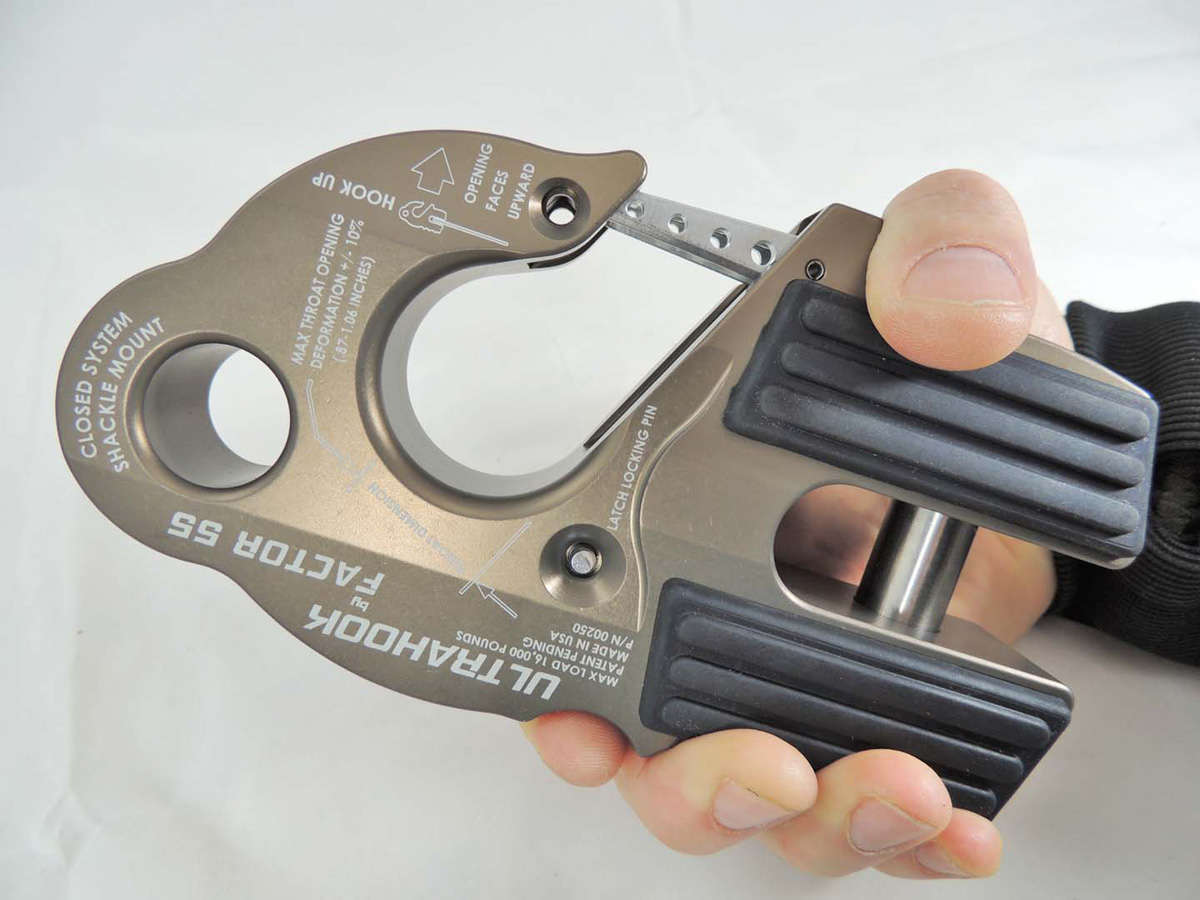

FACTOR 55 UltraHook Gray. Showing how the hand grips fit your fingers.

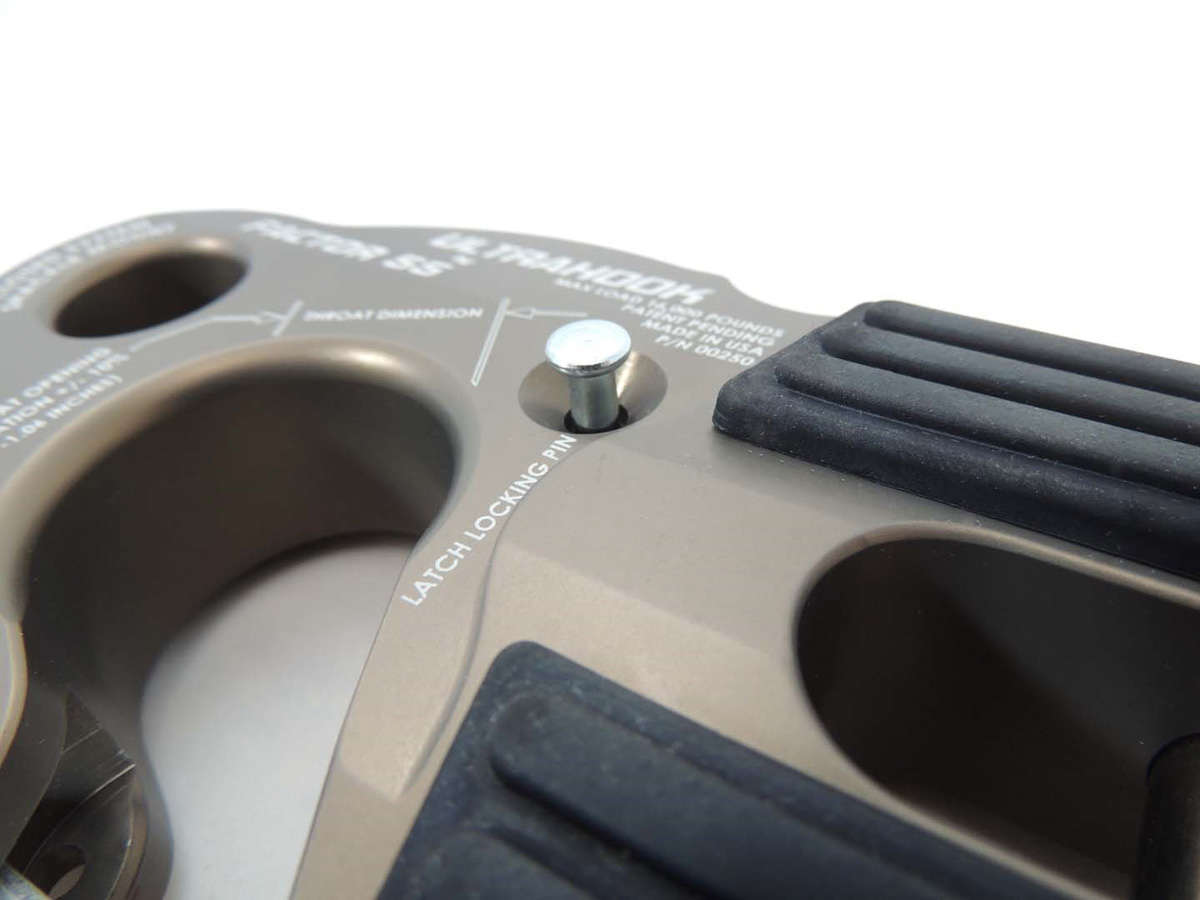

FACTOR 55 UltraHook close up on the latch locking pin extended

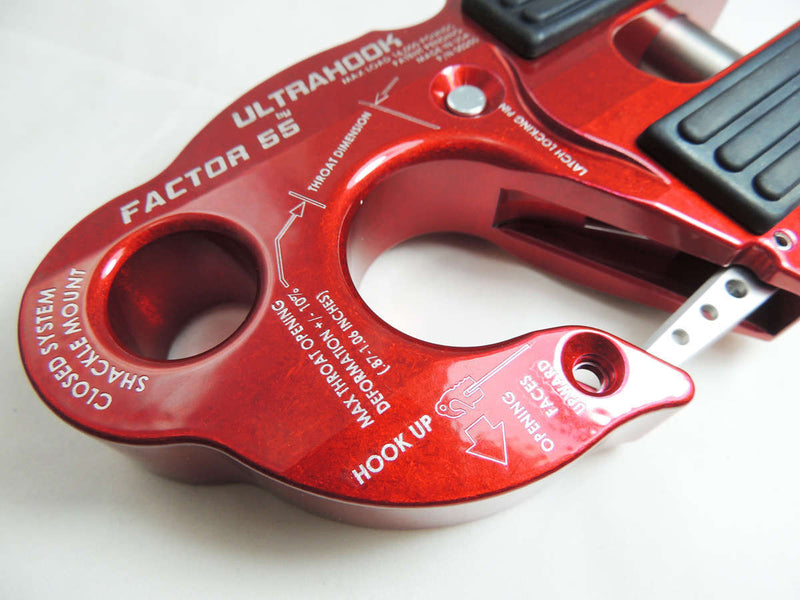

FACTOR 55 UltraHook in red. Close up on hook throat.

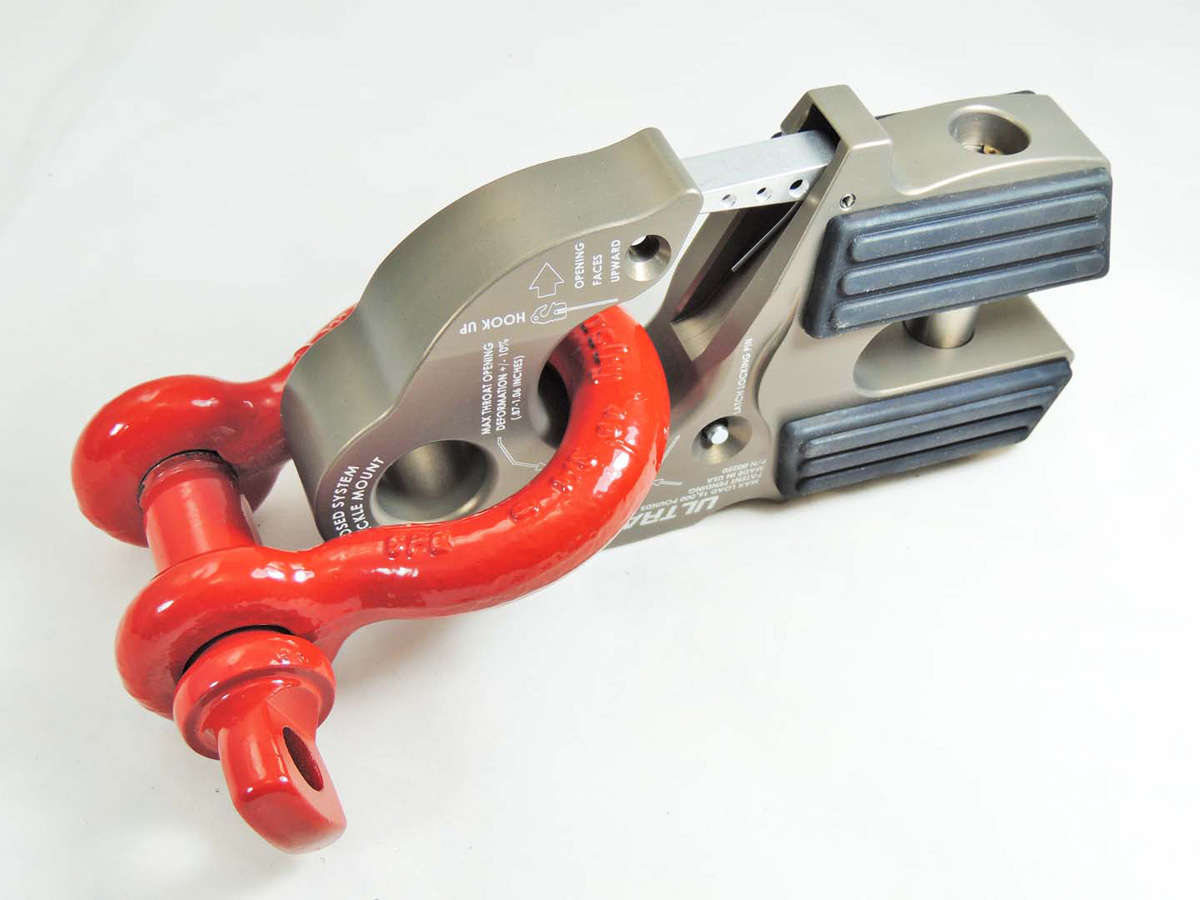

FACTOR 55 UltraHook Low Profile Shackle Mount closed on a bow shackle
FACTOR 55 UltraHook in red. The hook has a titanium pin at the base and an aluminum hook with a locking gate and a separate circular shackle mounting hole.
FACTOR 55 UltraHook in red, mounted to a winch on the bumper of a toyota, right under a light bar.
FACTOR 55 UltraHook Low Profile Shackle Mount Video. Image shoes a person clipping the ultra hook to a bow shackle on a bumper
FACTOR 55 UltraHook Low Profile Shackle Mount in Gray
FACTOR 55 UltraHook close up detail on the hook. The throat of the hook measures .87 inches
FACTOR 55 UltraHook Low Profile Shackle Mount in gray. Top View
FACTOR 55 UltraHook Gray. Showing how the hand grips fit your fingers.
FACTOR 55 UltraHook close up on the latch locking pin extended
FACTOR 55 UltraHook in red. Close up on hook throat.
FACTOR 55 UltraHook Low Profile Shackle Mount closed on a bow shackle

Factor 55 | UltraHook Low Profile Shackle Mount

Factor 55 SKU: F55-00250-01
Color — Red
Price
Save
/
Shipping calculated at checkout.
  • Secure Payments

**All Factor 55 products are shipped separate from other order items**

The world’s safest winch hook.

Featuring Industry first Closed System Shackle Mount hole machined into the body of the hook, safety latch retraction pocket resulting in a clear throat opening, integrated secondary safety latch locking feature-latch locking pin stored in the body of the UltraHook which can be removed and inserted in to the hook tip, locking the latch into place.

EPDM rubber pads for fairlead protection, titanium double shear pin, and a finger grip feature that promotes proper “Hook Up” orientation.

The first winch hook that can be stored against your fairlead protecting either your hawse or roller style fairlead from a metal to metal connection.

Made in USA

U.S. Utility Patent No. 9,388,025
Foreign Patents Pending

  • The industry’s first winch hook with an integrated shackle pin mount
  • Two methods of use: conventional hook opening, or shackle mount
  • Shackle pin mount allows the safer practice of Closed System Winching
  • Finger grip feature promotes proper “Hook Up” orientation
  • Double locking safety clasp – lock the safety clasp with the included clevis pin
  • Latch lock clevis pin stored conveniently in hook body
  • Integrated EPDM rubber pads for fairlead surface protection
  • Max opening deformation clearly laser engraved
  • Lightweight – Precision CNC machined 7000 series Military Grade Aluminum
  • No rope splicing required – double shear pin design accepts rope/cable eyes
  • Designed for both steel cables and synthetic winch ropes
  • Foldable to stow rattle free against fairleads
  • Shackle pin mounting hole accepts ¾ shackle pins (.875” diameter)
  • For rope and cable diameters up to 3/8’’
  • Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
  • 5/8” diameter 6AI-4V grade V titanium double shear pin
  • Max Rated Load: 16,000 pounds
  • Ultimate Strength – Hook Throat Opening: 31,000 pounds
  • Ultimate Strength – Shackle Pin Mount: 48,000 pounds
  • Weight: 32oz

MADE IN THE USA



Weight 2.2 lbs
Dimensions 7.5 × 5 × 3 in
